BP Autosports Custom Air-To-Water Intercooler
BP Autosports Custom Air-To-Water Intercooler

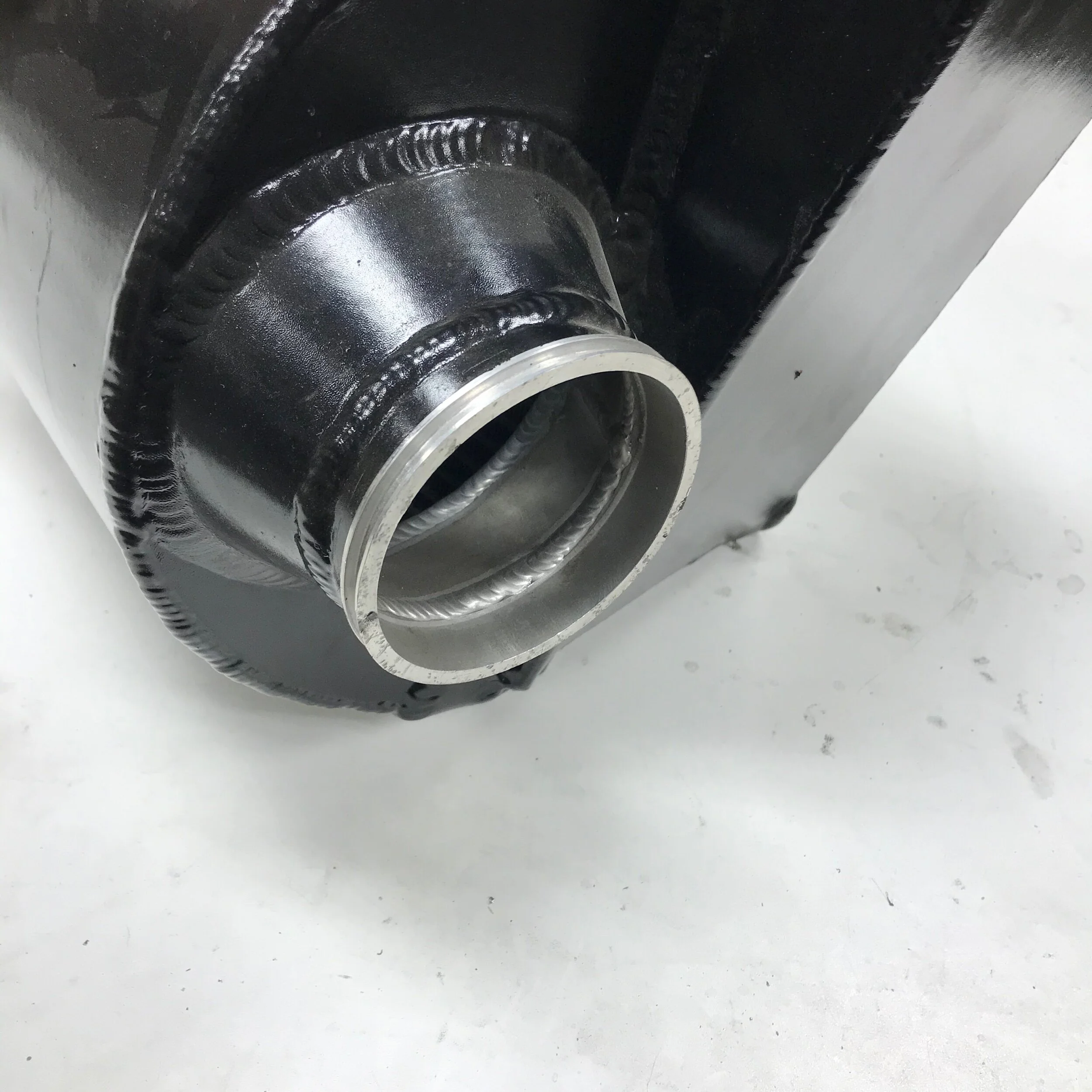

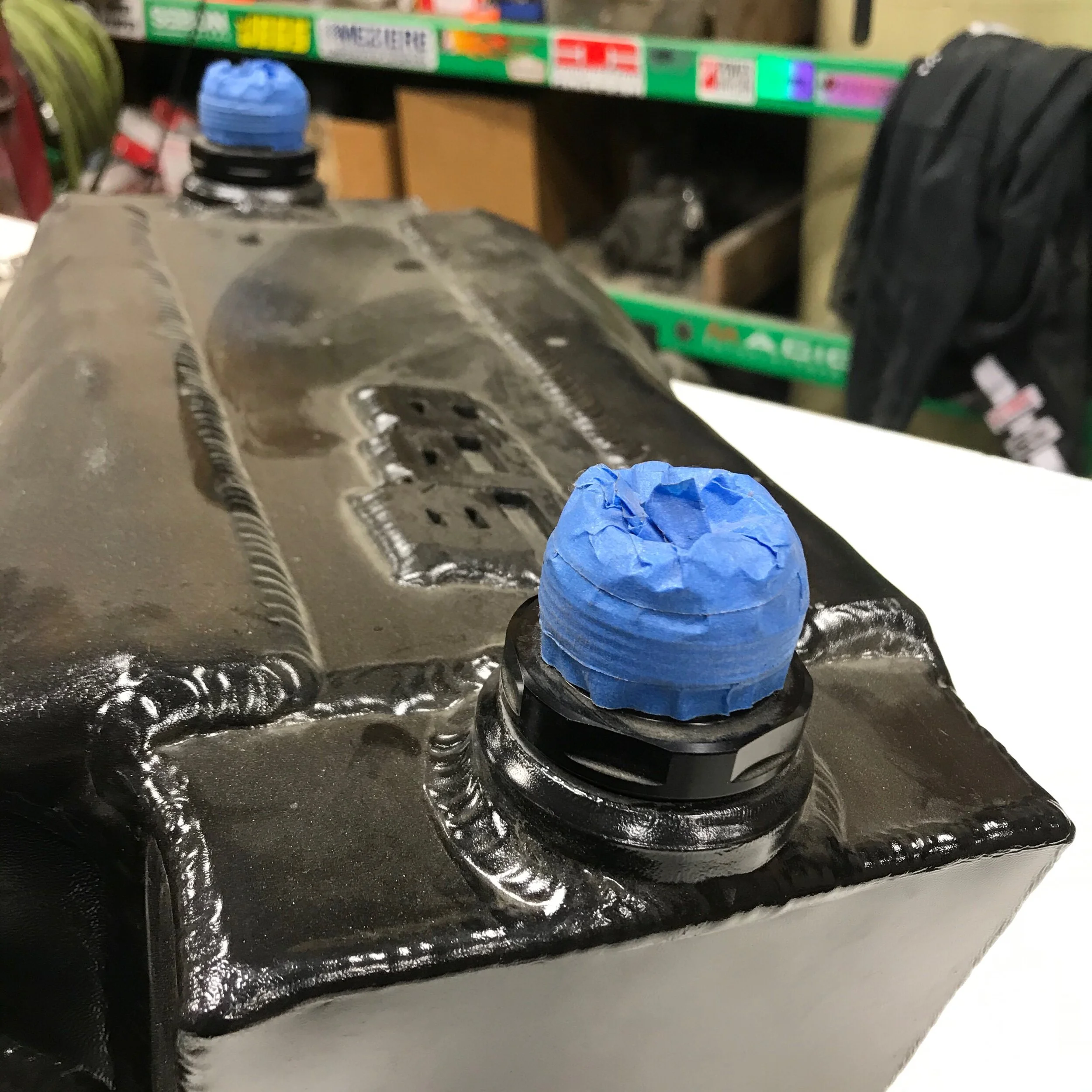

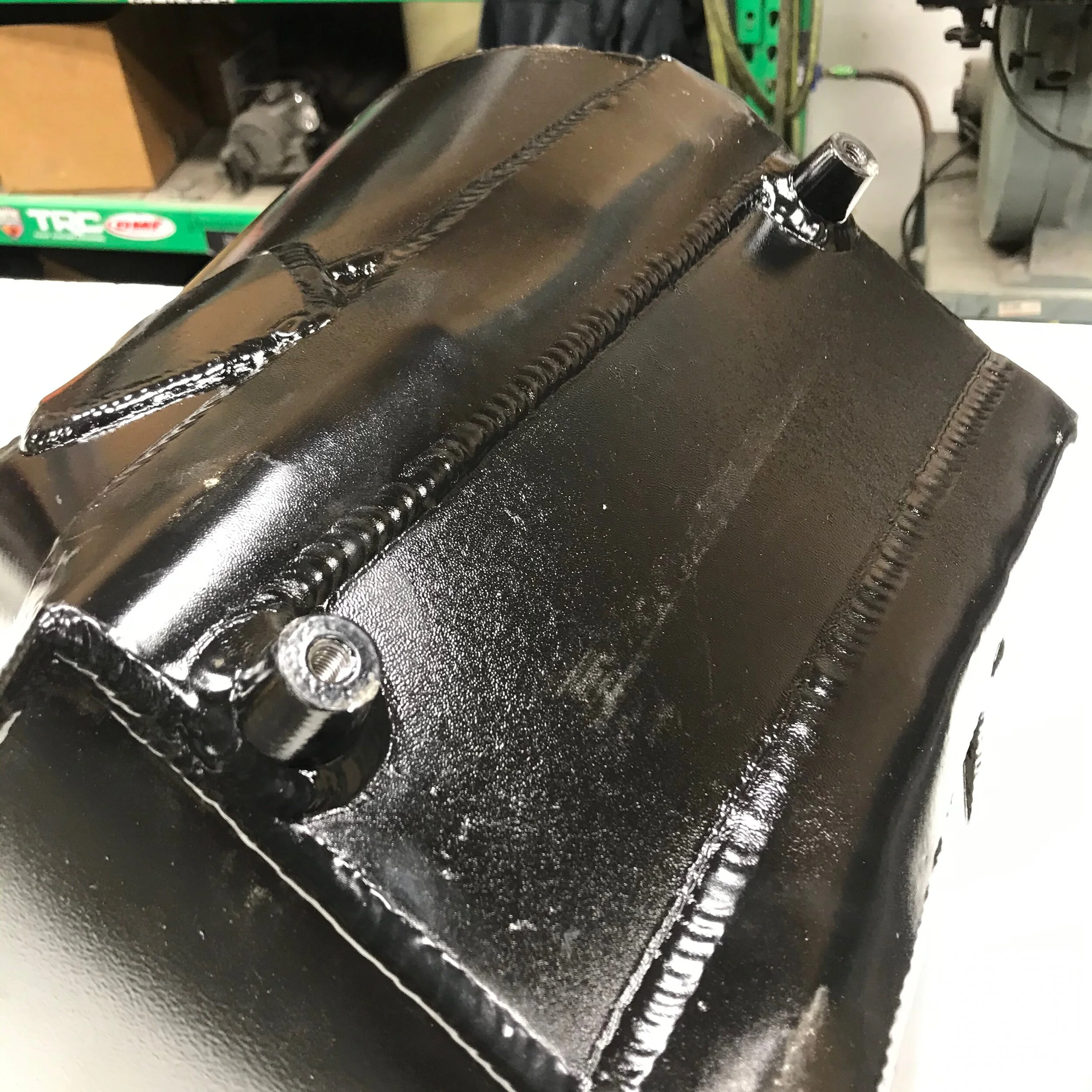

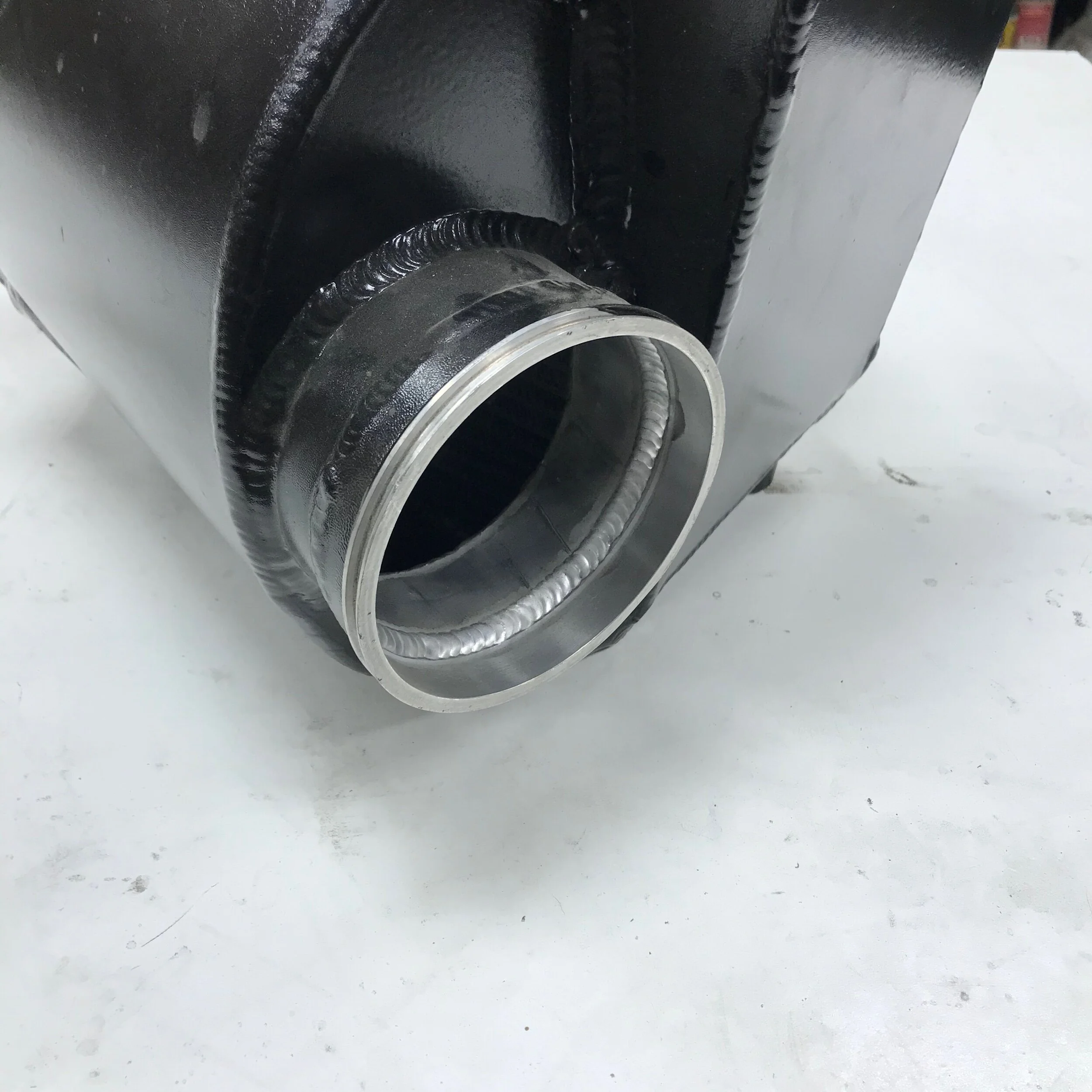

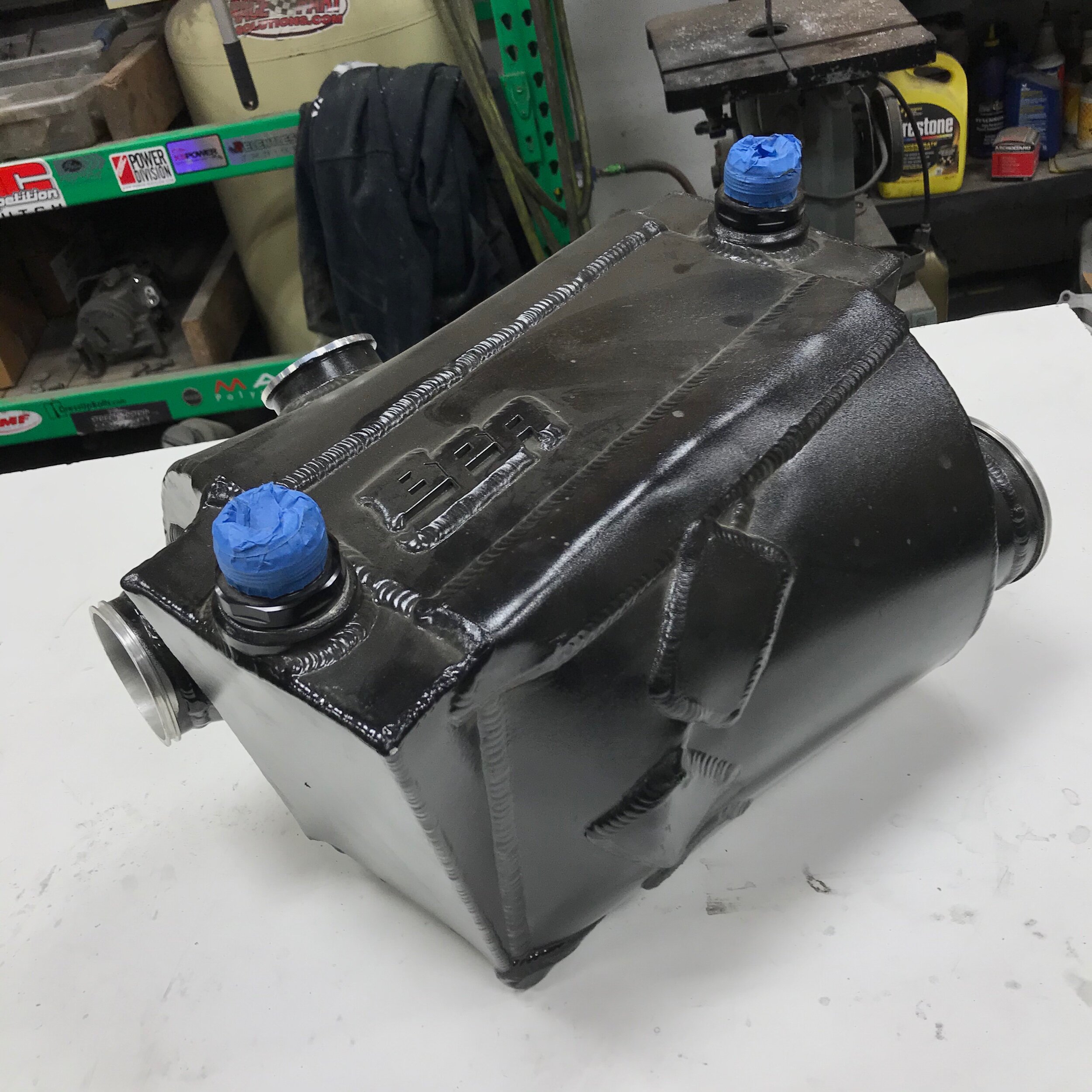

This is the custom air-to-water intercooler I had built for the shop Supra. This intercooler features a 12” x 11” x 6” Bell core, radiused pressure tanks, 3” and 4” Wiggins connectors on the hot side and cold side, respectively, a Turbosmart Power Port blow off valve flange, -20AN ORB bungs for water inlet and outlet, and two M8 x 1.25 threaded mounting bosses on its underside.
This intercooler is brand new. I’ve opted to switch to an air-to-air intercooler on the Supra, and have no use for this intercooler any longer. This intercooler will support massive power. The powder coat finish is subpar, and it will be the purchaser’s responsibility to have it recoated if they desire.
Included are two -20AN ORB straight fittings.
Approximate Overall Dimensions (without fittings):
L: 17”
W: 14.5”
Height: 12”
